Oil circuit
for oil free screw compressors
Valves to regulate the oil flow needed for lubrication of bearing and gear box to ensure a safe working condition of an oil free screw compressor.
Thermostatic valve
Short profile
Regulation of the oil temperature in the designed range by varying the oil flow through the oil cooler
TV:
Pure thermostatic valve with regulation function only
TF:
Regulation of oil temperature with additional oil filtration using a spin-on filter
Technical data
- Maximum working pressure:
- 16 barg I 232 psig
- Ambient temperature:
- -20 to +120 °C I -4 to +248 °F
- Thermostat setting:
- 55 to 70 °C I 131 to 158 °F
70 to 85 °C I 158 to 185 °F
71 to 80 °C I 160 to 176 °F
73 to 88 °C I 163 to 190 °F - Oil flow:
- 45 to 400 l/min I 12 to 106 gal/min
- Port size:
- ½ to 1 ½ in

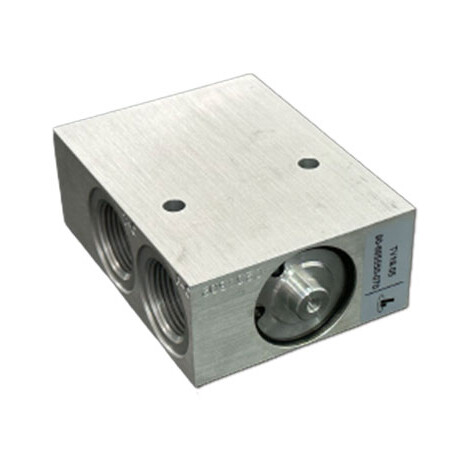

TV – Thermostatic valve

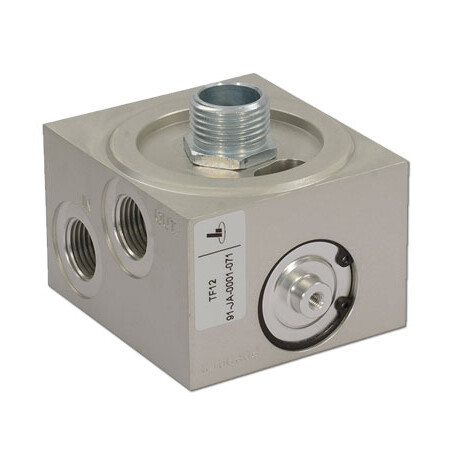

TF — Thermostatic valve with filter arrangement
Further products available on request
Please contact us via air-industrial@hoerbiger.com
