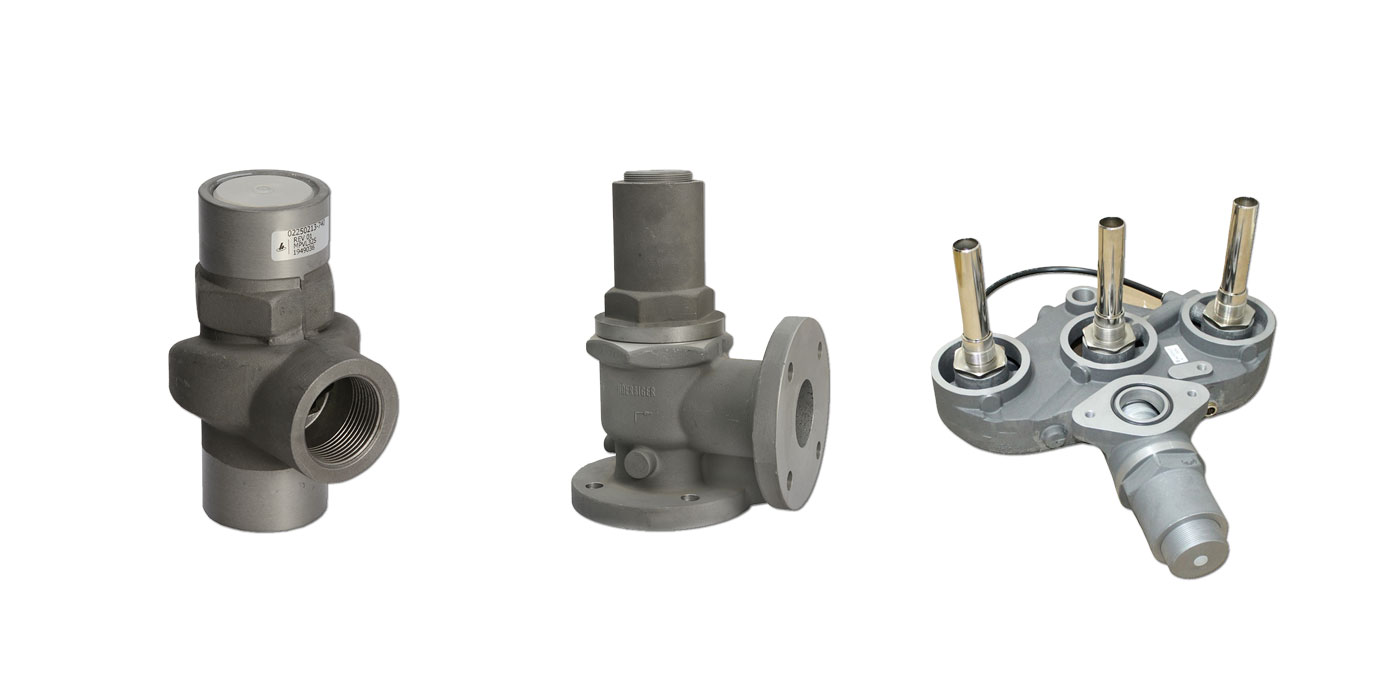

Discharge Control for Water Injected Screw Compressors

Discharge control

for water injected screw compressors

Discharge control components ensure that the minimum water flow required for cooling and lubricating the compressor is maintained during start-up and off-load and when the user lines are fully open. Optional combination with filtrations possible.

Minimum pressure valve
Short profile

Ensure the water flow by keeping a minimum pressure level in the compressor. The integrated check valve prevents back flow from air-net during stop and idling.

MPVL:
Functional tube connector/ Component of the pressure line after water separation

MPVL ETS:
Allows integration into customer components (e.g. separator tank, air cooler)

All components corrosion free/protected.

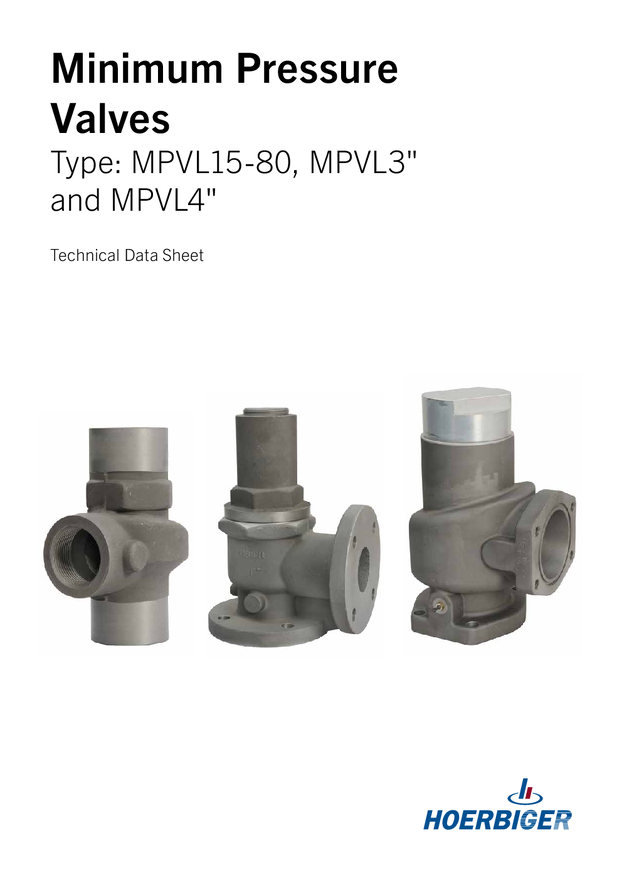

Technical data
Combination block
Short profile

Combination of minimum pressure valve and air/water separator.

All components corrosion free/protected.

Technical data

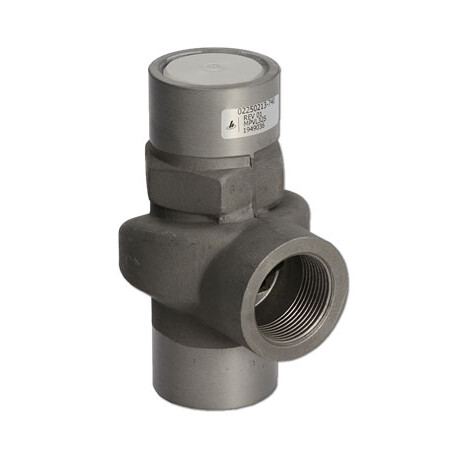

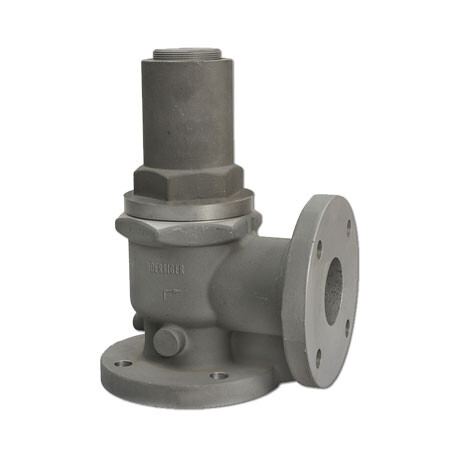

MPVL — Minimum pressure valve
MPVL — Minimum pressure valve
MPVL — Minimum pressure valve
MPVL — Minimum pressure valve

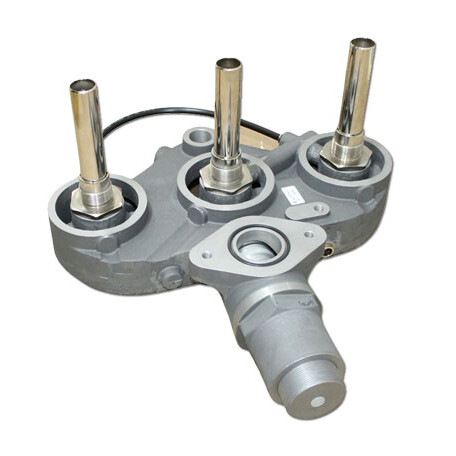

MD — Combination block
Combination block
Components for rotary screw compressors
