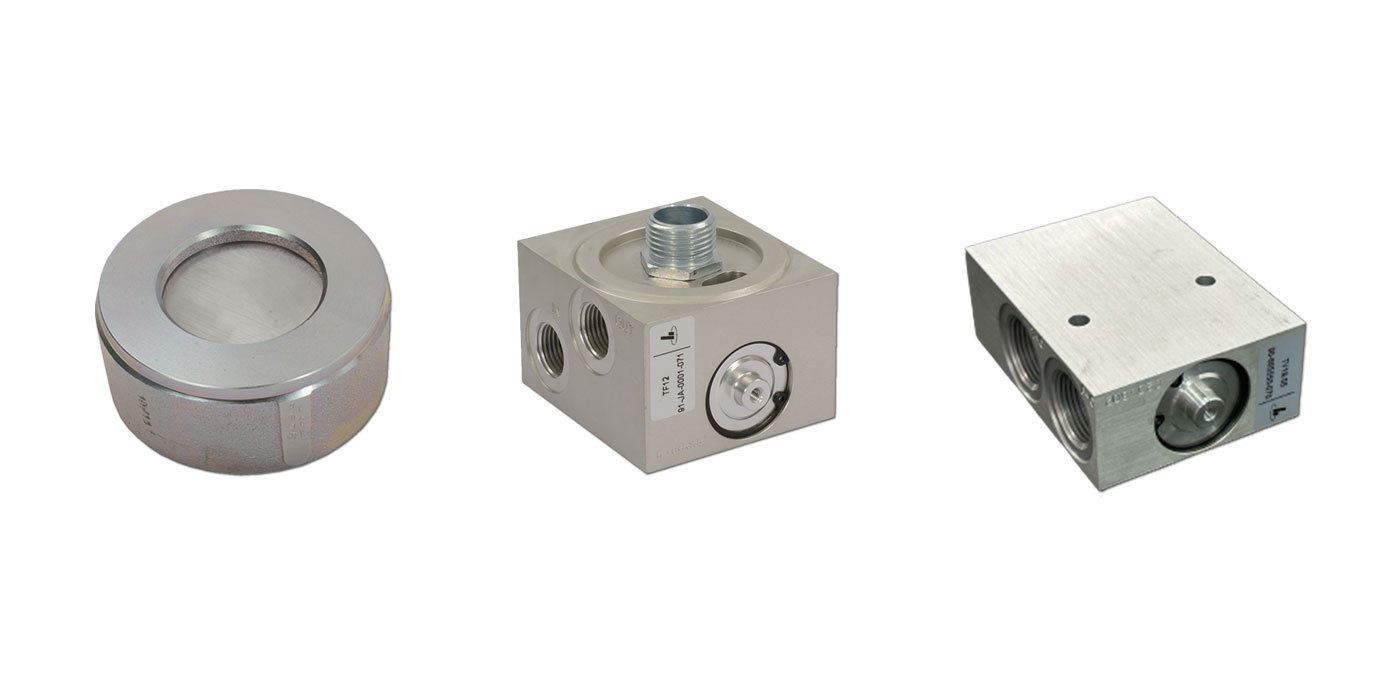

Oil circuit for Oil Injected Screw Compressors

Oil circuit

for oil injected screw compressors

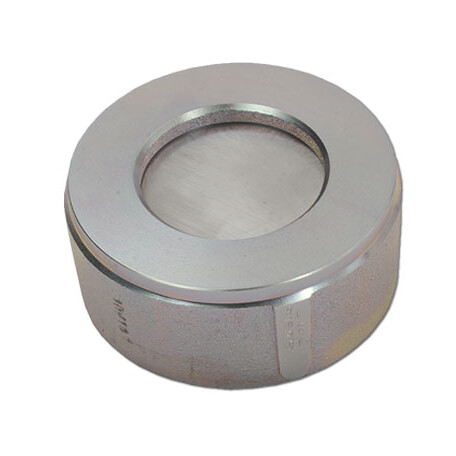

Check valve A-type
Short profile

Ensures one way flow for the medium (air and oil mixture)

Technical data
Thermostatic valve
Short profile

Regulation of the oil temperature in the designed range by varying the oil flow through the oil cooler

TV:
Pure thermostatic valve with regulation function only

TF:
Regulation of oil temperature with additional oil filtration using a spin-on filter

Technical data
Check valve A-type
Check valve A-type
TV — Thermostatic valve
TV — Thermostatic valve
TF — Thermostatic valve
TF — Thermostatic valve with filter arrangement
