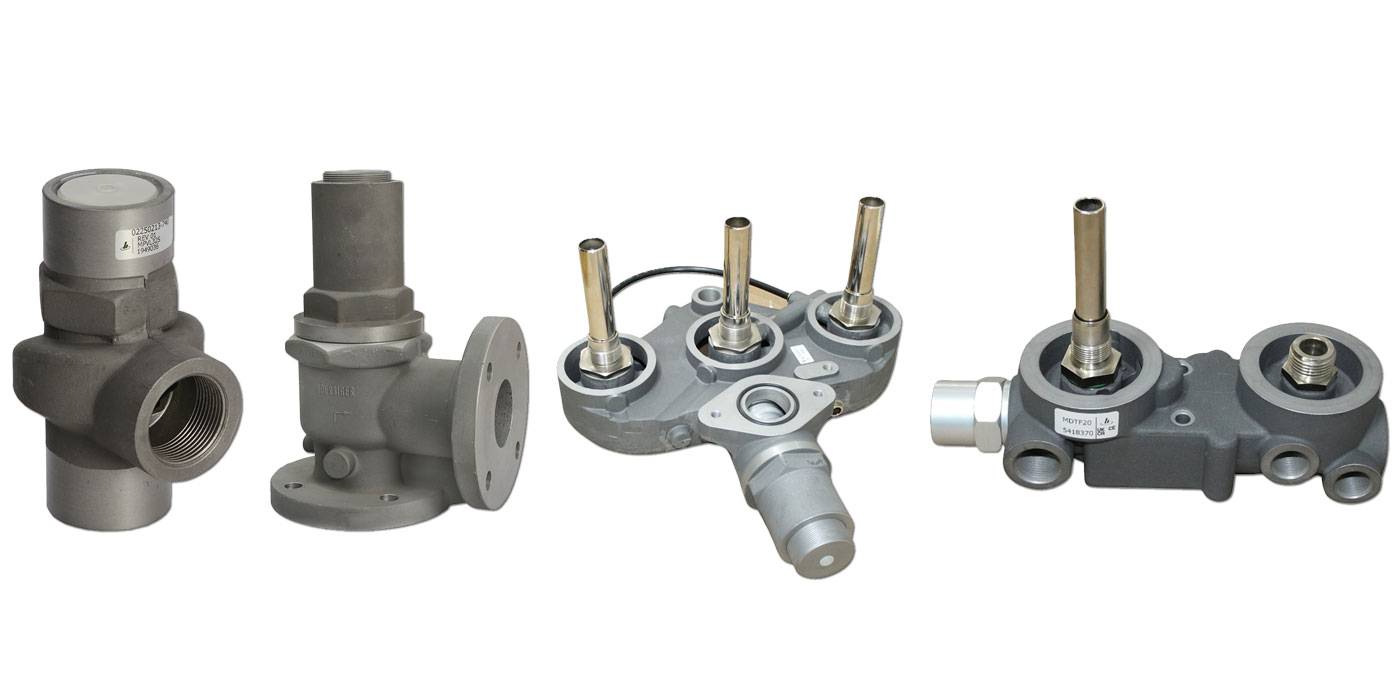

Discharge control
for oil injected screw compressors
Discharge control components ensure that the minimum oil flow required for cooling and lubricating the compressor is maintained during start-up and off-load and when the user lines are fully open. Optional combinations with filtrations and oil temperature regulation possible.
Ensure the oil flow by keeping a minimum pressure level in the compressor. The integrated check valve prevents back flow from air-net during stop and idling.
MPVL:
Functional tube connector/ Component of the pressure line after oil separation
MPVL ETS:
Allows integration into customer components (e.g. separator tank, air cooler)
- Volume air flow:
- MPVL: 0.6 to 200 Nm3/min I 22 to 7100 scfm
MPVL ETS: Depends on customer Housing - Maximum working pressure:
- Standard 16 barg I 232 psig
High pressure 40 barg I 580 psig on demand - Ambient temperature:
- -20 to + 120 °C I -4 to 248 °F
- Inlet/outlet connections:
- Threaded or flanged
Type: MPVL15-80, MPVL3" and MPVL4"
Combination of minimum pressure valve and oil thermostatic valve with housing for spin-on filters.
MD:
Combination of minimum pressure valve and air/oil separator

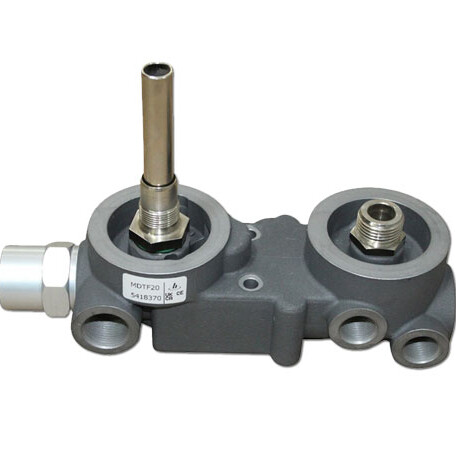

MDTF:
Combination of minimum pressure valve, oil thermostatic valve with air/oil separator and oil filter
- Volume air flow:
- MD: 5 to 26 Nm3/min I 205 to 920 scfm
MDTF: 2 to 6 Nm3/min I 70 to 200 scfm - Maximum working pressure:
- 16 barg I 232 psig
- Ambient temperature:
- -20 to +120 °C I -4 to 248 °F
- Thermostat setting (for MDTF only):
- 55 to 70 °C I 131 to 158 °F
70 to 85 °C I 158 to 185 °F
71 to 80 °C I 160 to 176 °F
73 to 88 °C I 163 to 190 °F - Oil flow (for MDTF only):
- 45 to 80 l/min I 11 to 22 gal/min
